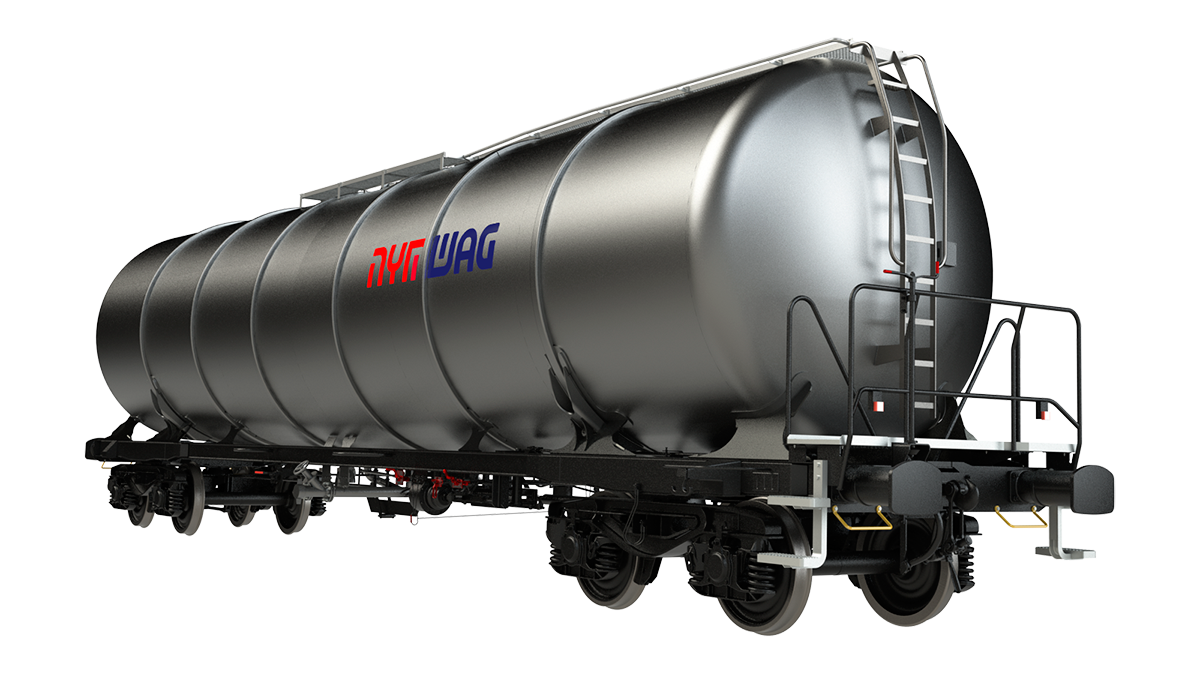

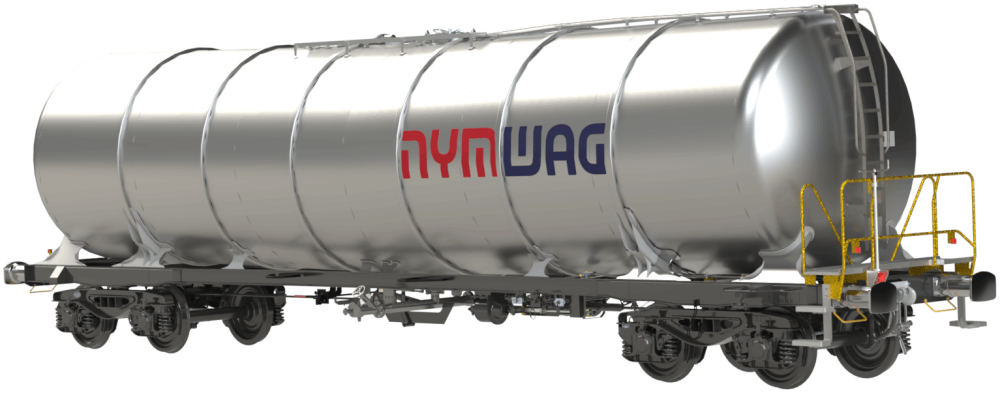

Zacns 98 tank wagon
The wagon complies with the European legislation TSI WAG, GCU and UIC.
Safe
High transport efficiency
GPS locator
Unique parameters
| Length over buffers | 16 400 mm |
|---|---|
| Tare weight | 21,5 t ± 2% |
| Loading weight | 68,5 t |
| Total weight | 90 t |
| Tank code under RID | L4BH |
| Maximum axle load | 22,5 t |
| Bogie | Y25 Lsd |
| Brake | GP |
| Distance between pivots | 11 360 mm |
| Kinematic gauge | G1 - EN 15273-2 |
| Tank slope | 1° |
| Loading capacity | 98 m³ |
| No. of wagons in a train (700 m) | 41 |
