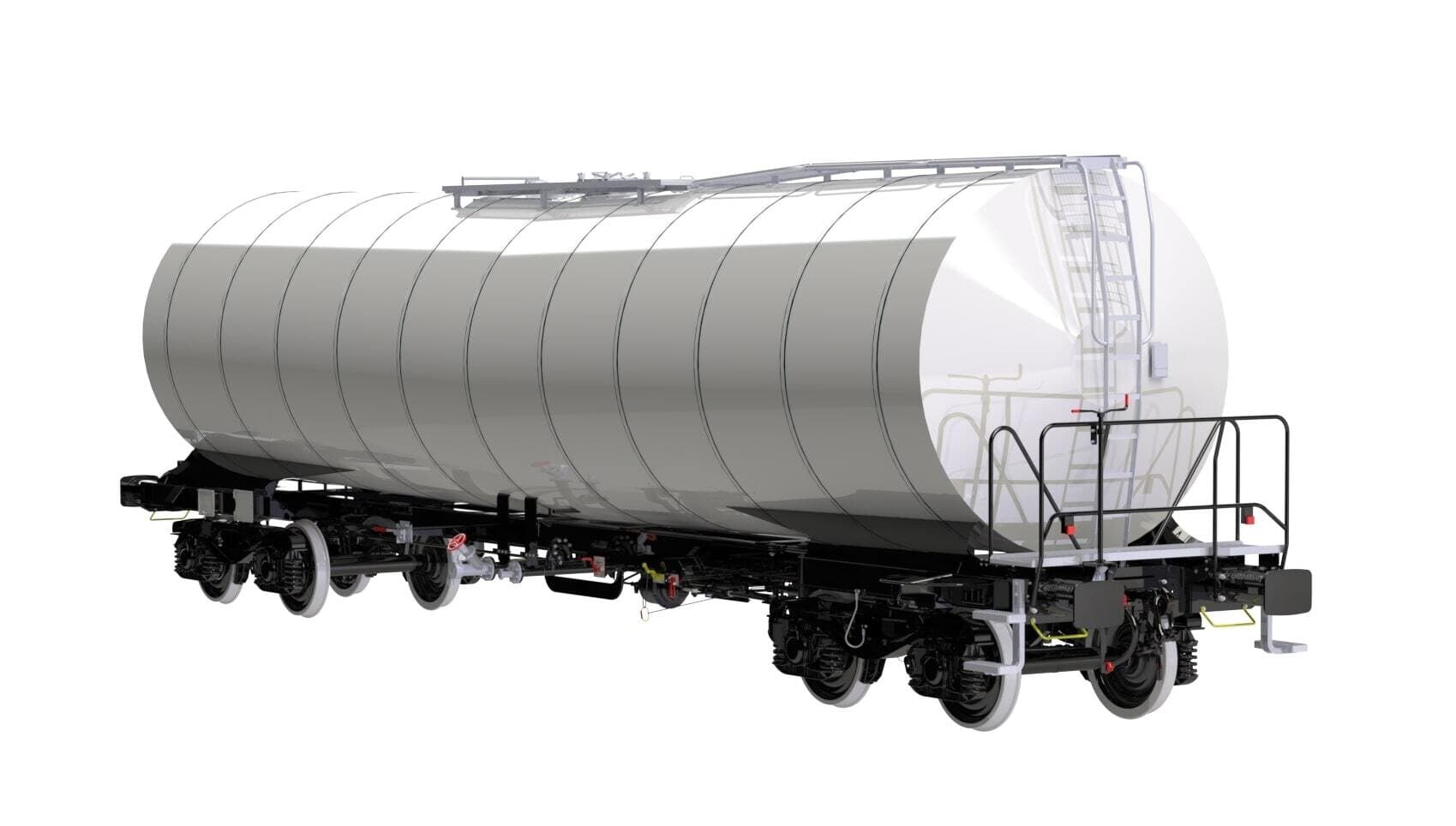

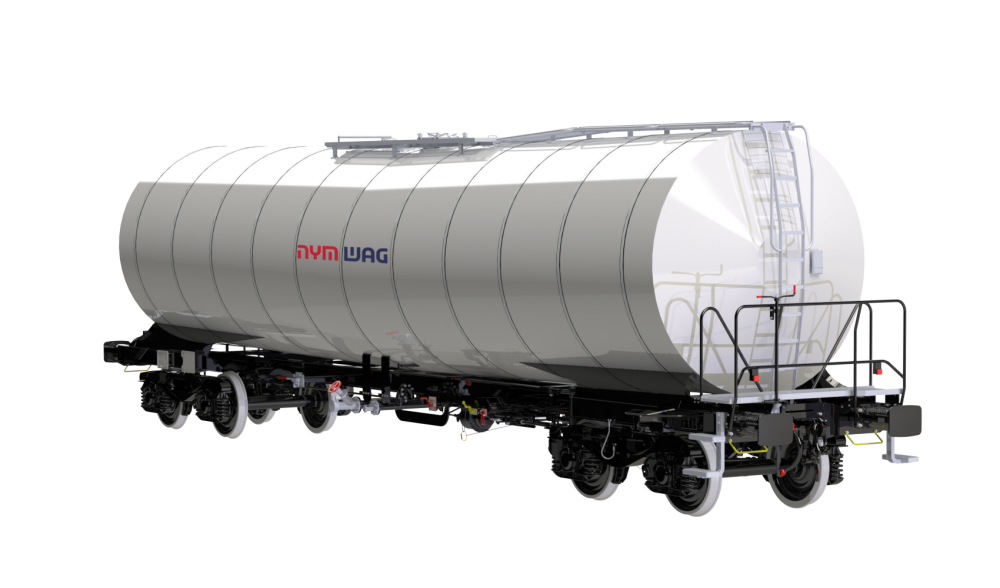

SPINA - Zac(e)ns 40-75 m3
The wagon complies with the European legislation TSI WAG, GCU and UIC. The wagon can be modified according to the customer's requirements: insulation, heating, material used, filling method.
Heat insulated
High transport efficiency
GPS locator
Unique parameters

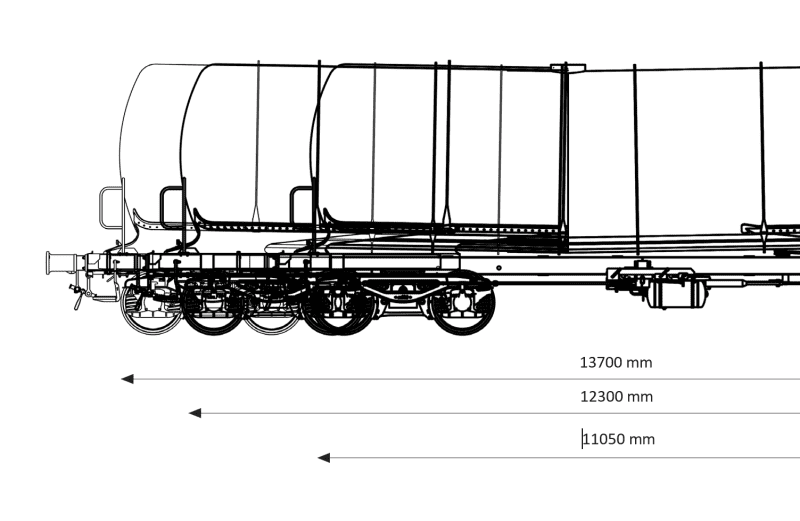

| Length over buffers | 13 140 - 15 840 mm |
|---|---|
| Tare weight | 21,8 - 25,2 t ± 2% |
| Tank code under RID | L4DH or L10BH |
| Environmental temperature | 190 °C |
| Heat insulation | 100 mm |
| Maximum axle load | 22,5 t |
| Bogie | Y25 Lsd |
| Brake | GP |
| Kinematic gauge | G1 - EN 15273-2 |
| Tank slope | 1° |
| Loading capacity | 40 - 75 m³ |
