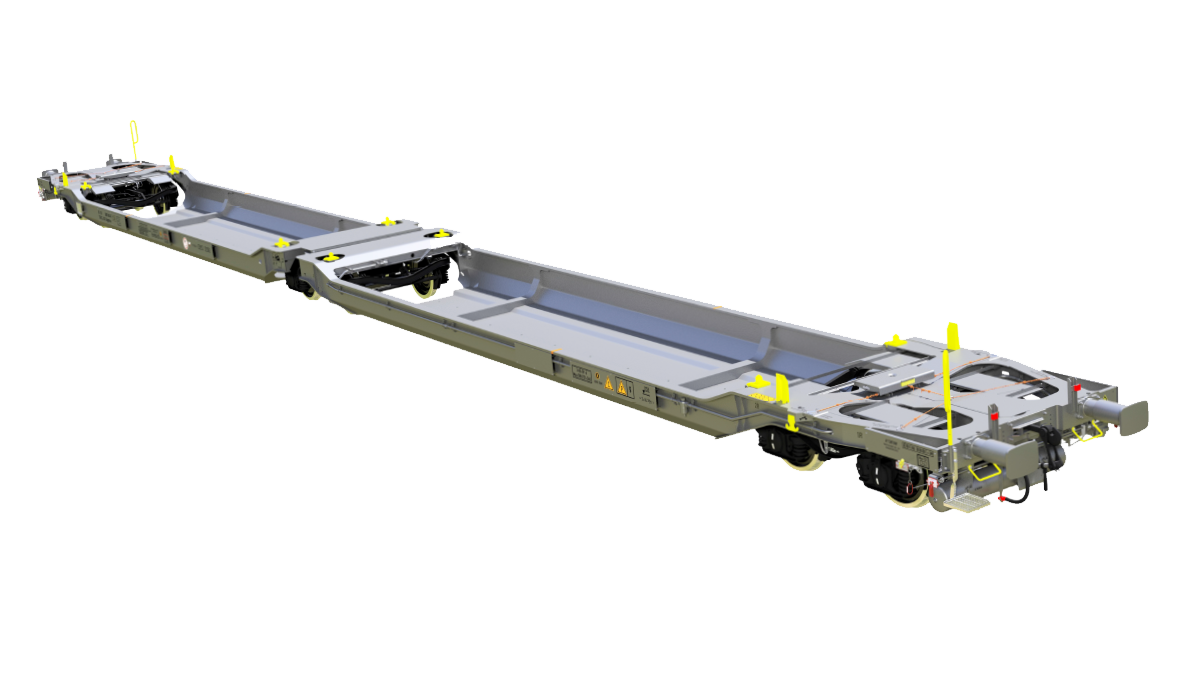

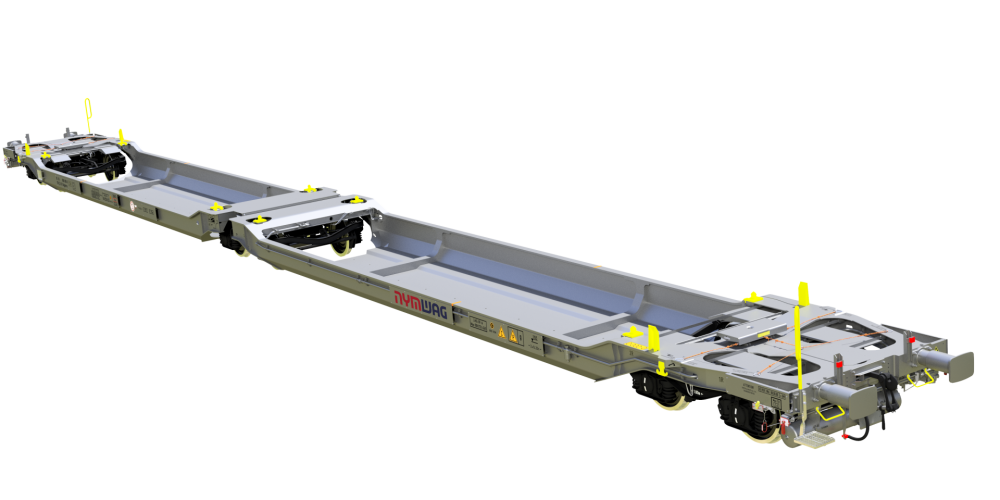

Sdggmrss ARROW intermodal wagon
The wagon complies with the European legislation TSI WAG, VSP and UIC.
Effective space
Light construction
GPS locator
Universal
| Length over buffers | 34 030 mm |
|---|---|
| Tare weight | 34 t ± 2% |
| Loading weight | 80 t |
| Total weight | 114 t |
| Maximum axle load | 22,5 t |
| Bogie | Y25 Lssi(f) |
| Brake | KE-GP-A |
| Distance between pivots | 2 x 12 025 mm |
| Kinematic gauge | G1 – GI2, acc. EN 15273-2 (CW) |
| Height of reference plane of pocket above RT | 270 mm |
| Width of the space between the beams | 2 700 mm |
| Compatibility code according to IRS 50596-5 | „g“ |
| Minimum radius | 75 m |
| Gauge | 1 435 mm |
