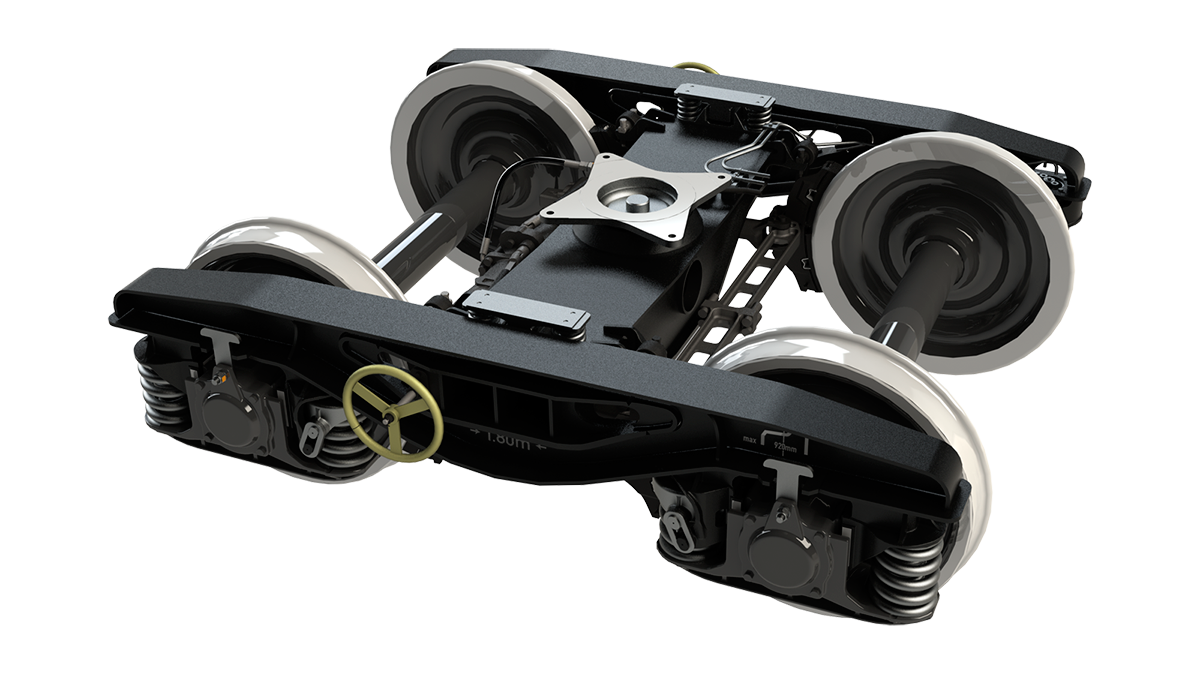

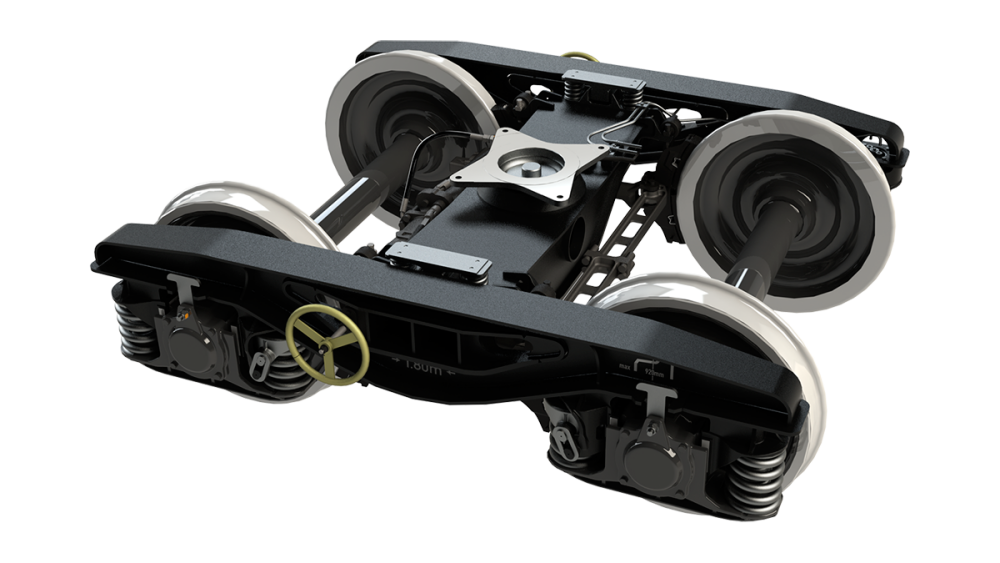

Y25 Lsi(f) bogie

Complete technical parameters

The two-axle bogie with an H-shaped frame and an integrated brake is designed for railway freight wagons to satisfy all requirements of railway freight transport.

Y25 Lsi(f)

Y25 Lsi(f) bogie

The bogie complies with the European legislation TSI WAG, GCU and UIC.

icon-shield

Safe

icon-feather

Light construction

icon-wrench

Simple maintenance

icon-check

Universal

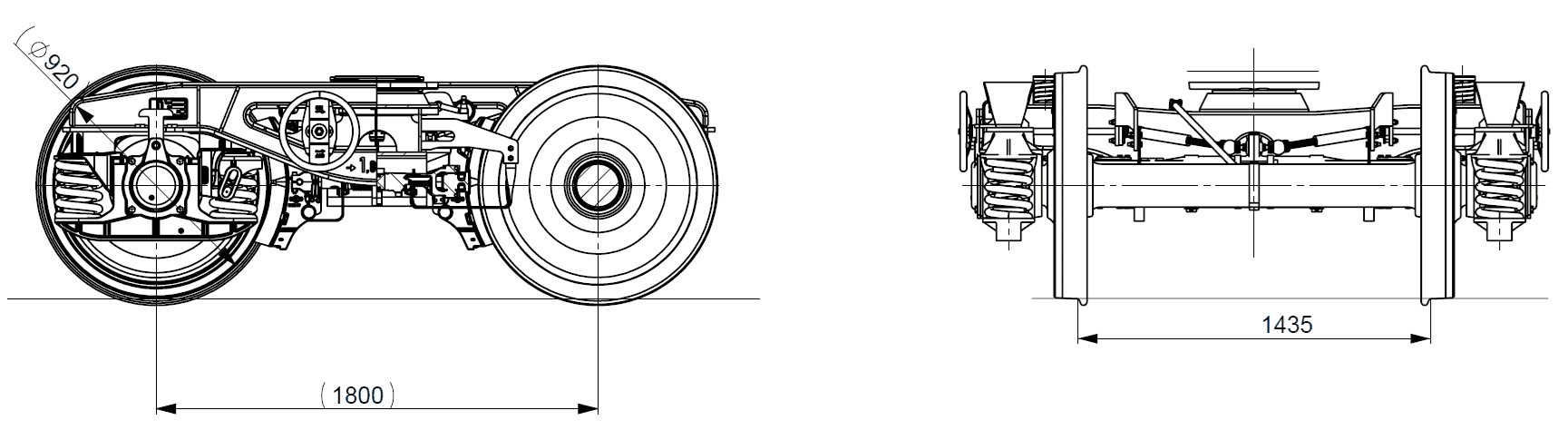

Podvozek Y25 Lsi(f)

Track gauge 1 435 mm
Bogie wheelbase 1 800 mm
Weight 4,1 t
Maximum axle load 22,5 t
Maximum speed 120 km/h
Brake Knorr, Wabtec
Interested in more information
