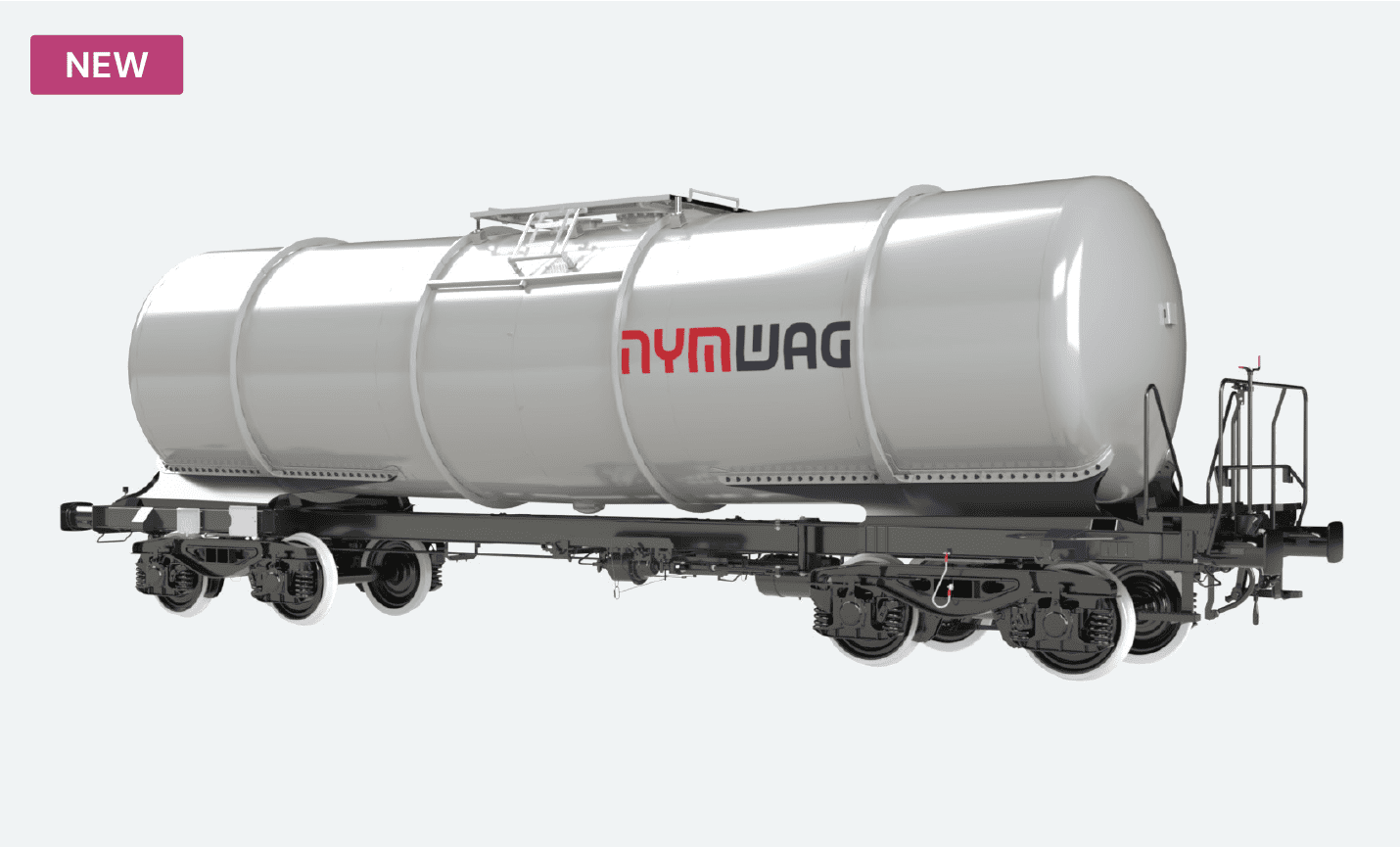

STAINLESS STEEL SPINA Zac(e)ns 40-75 m³
The wagon complies with the European
legislation TSI WAG, GCU and UIC.
Heat insulated
High transport efficiency
GPS locator
Unique parameters

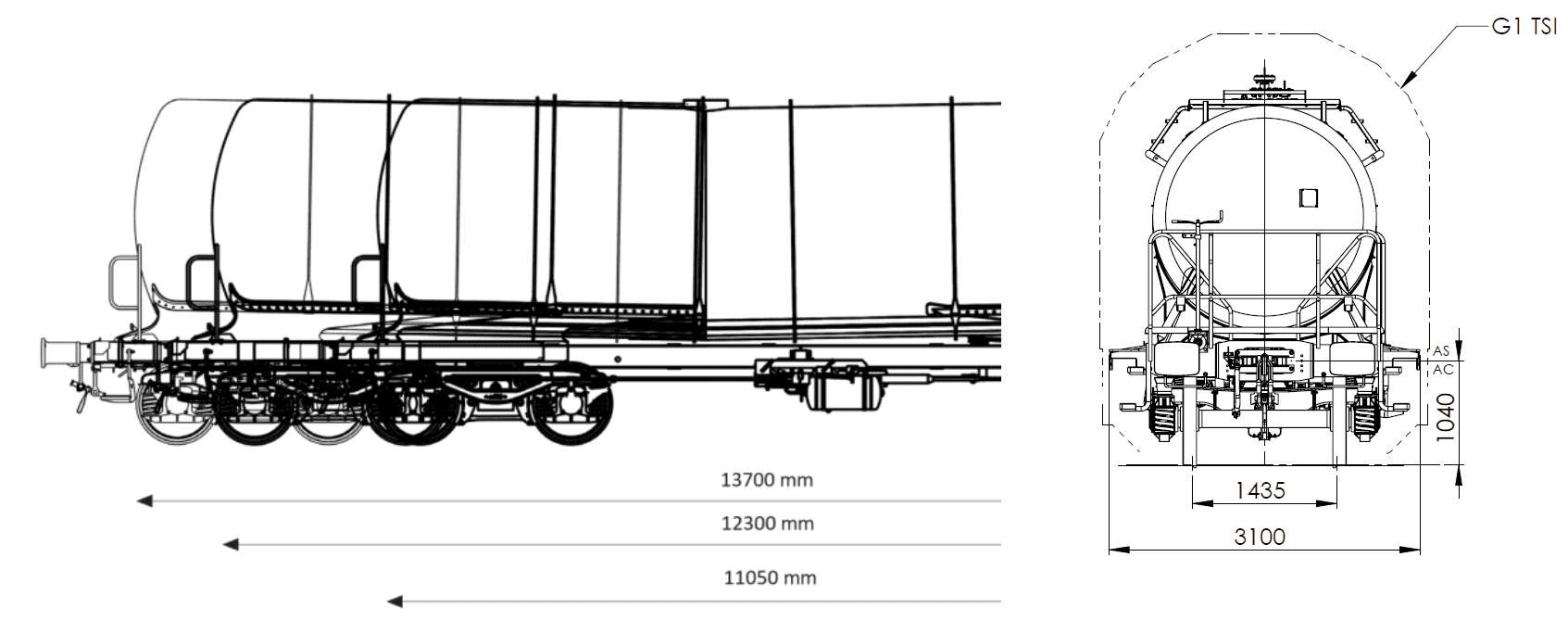

| Length over buffers | 13 140 - 15 840 mm |
|---|---|
| Tare weight | 20,5 - 26,0 t ± 2% |
| Tank code under RID | L4DH or L10BH |
| Environmental temperature | Max 190 °C |
| Heat insulation | Max 200 mm |
| Maximum axle load | 22,5 t |
| Bogie | Y25 Lsd |
| Brake | GP or GP-A |
| Kinematic gauge | G1 - EN 15273-2 |
| Tank slope | 1°-2° |
| Loading capacity | 40 - 75 m³ |
