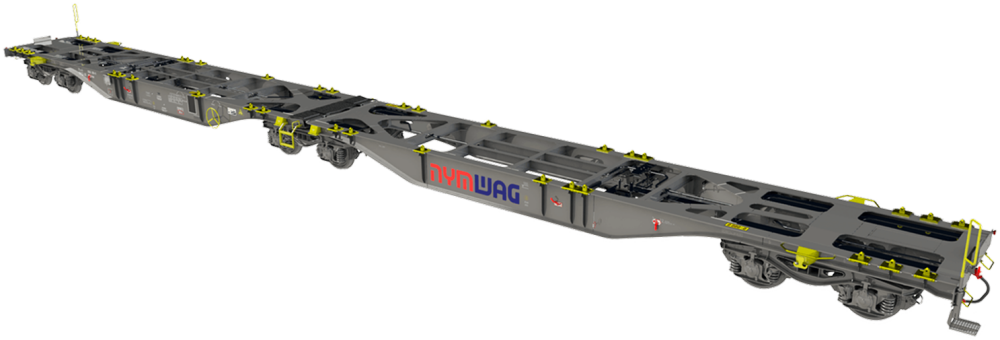

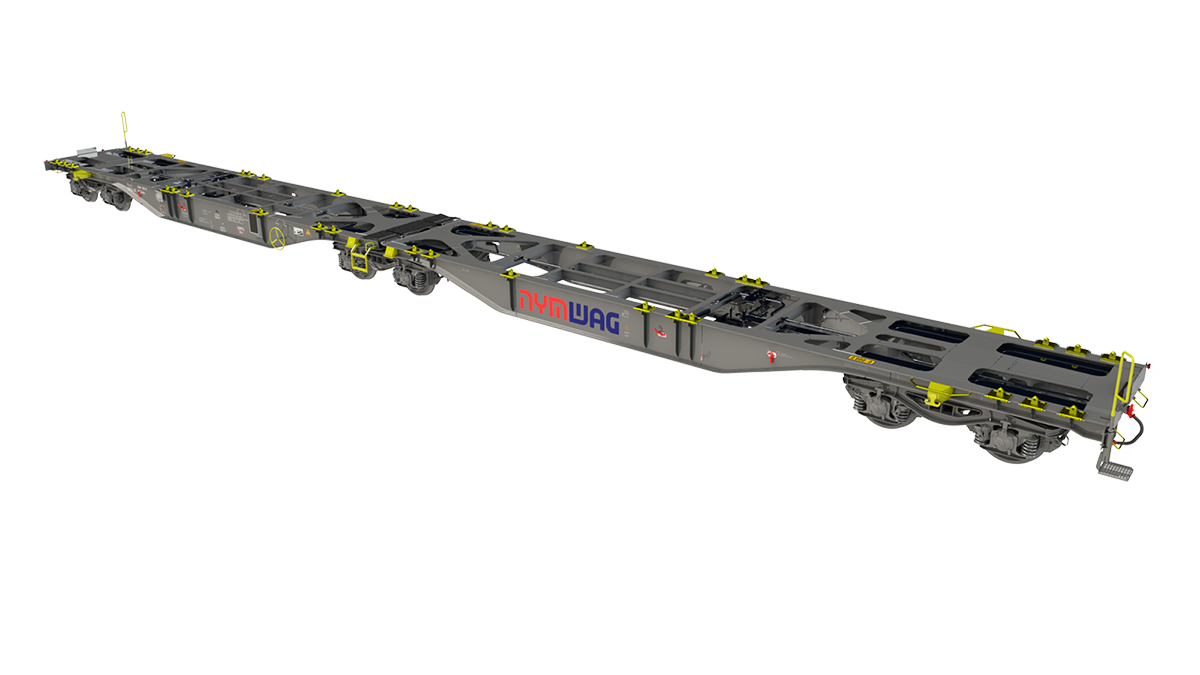

Sggmrss 90' platform wagon
The wagon complies with the European legislation TSI WAG, GCU and UIC.
Effective space
Light construction
GPS locator
Universal
| Length over buffers | 29 590 mm |
|---|---|
| Tare weight | 27,9 t ± 2% |
| Loading weight | 107,1 t |
| Total weight | 135 t |
| Maximum axle load | 22,5 t |
| Bogie | Y25 Ls1-K |
| Brake | GP-A |
| Distance between pivots | 2 x 12 025 mm |
| Kinematic gauge | G1 - EN 15273-2 |
| Loading length | 2 x 13 820 mm |
| Loading height | 1 155 mm |
| No. of wagons in a train (700 m) | 23 |
