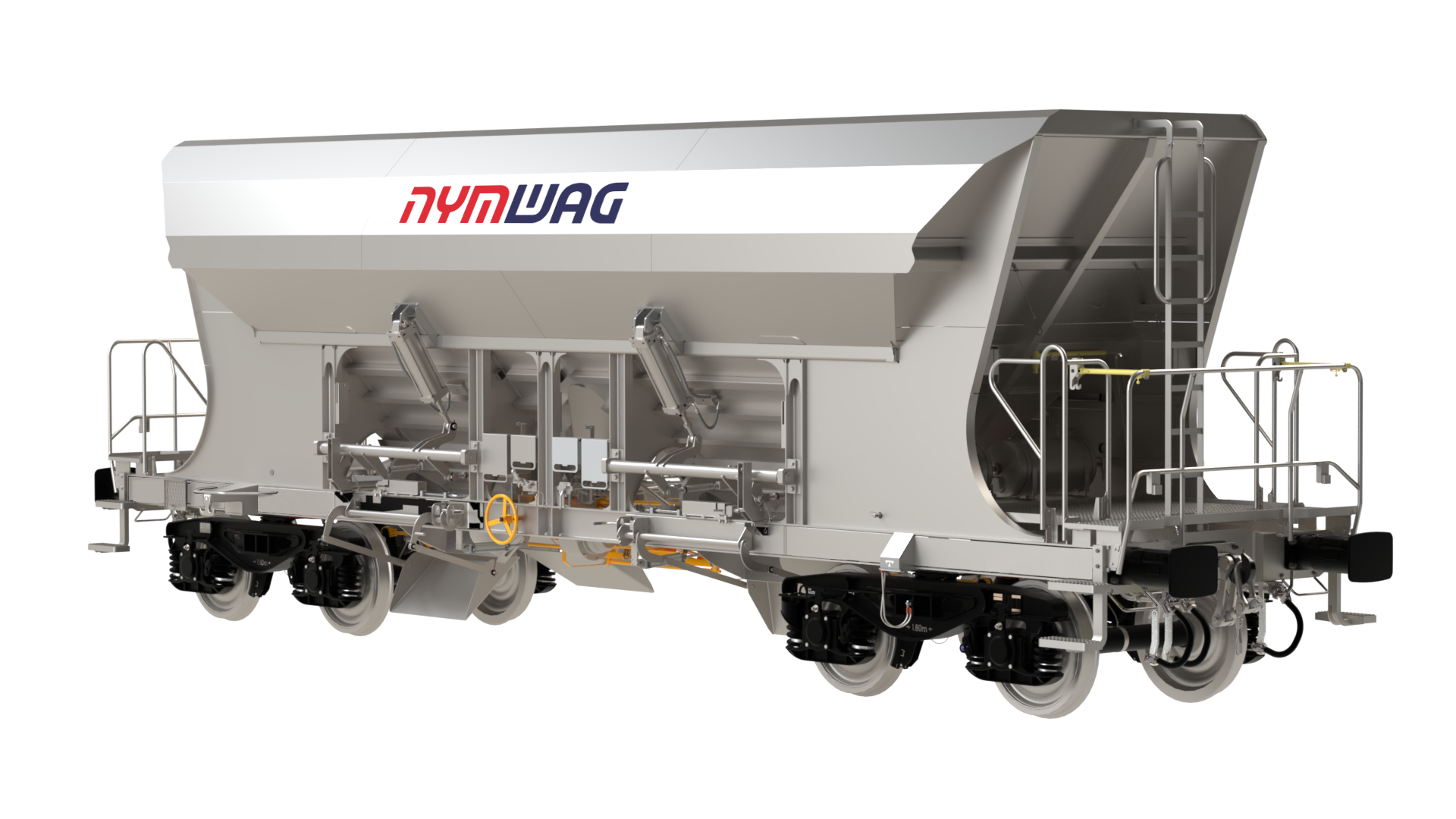

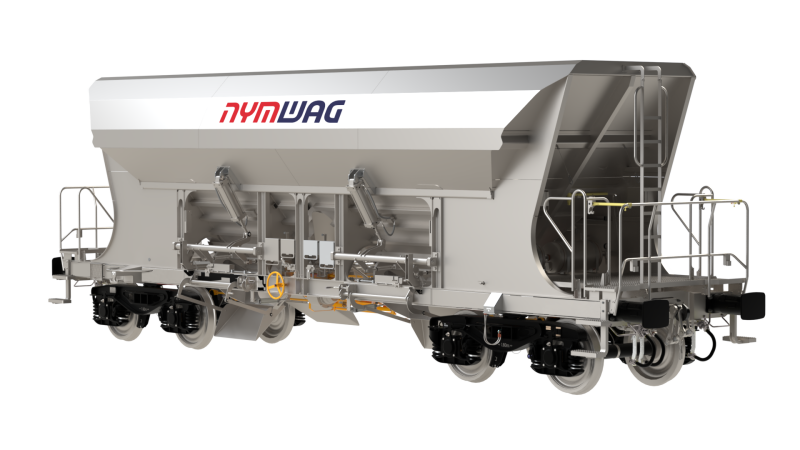

Hopper wagon Faccn(pp)s 48
The wagon complies with the European legislation TSI WAG, GCU a UIC.
Safe
High transport efficiency
GPS locator
Unique parameters

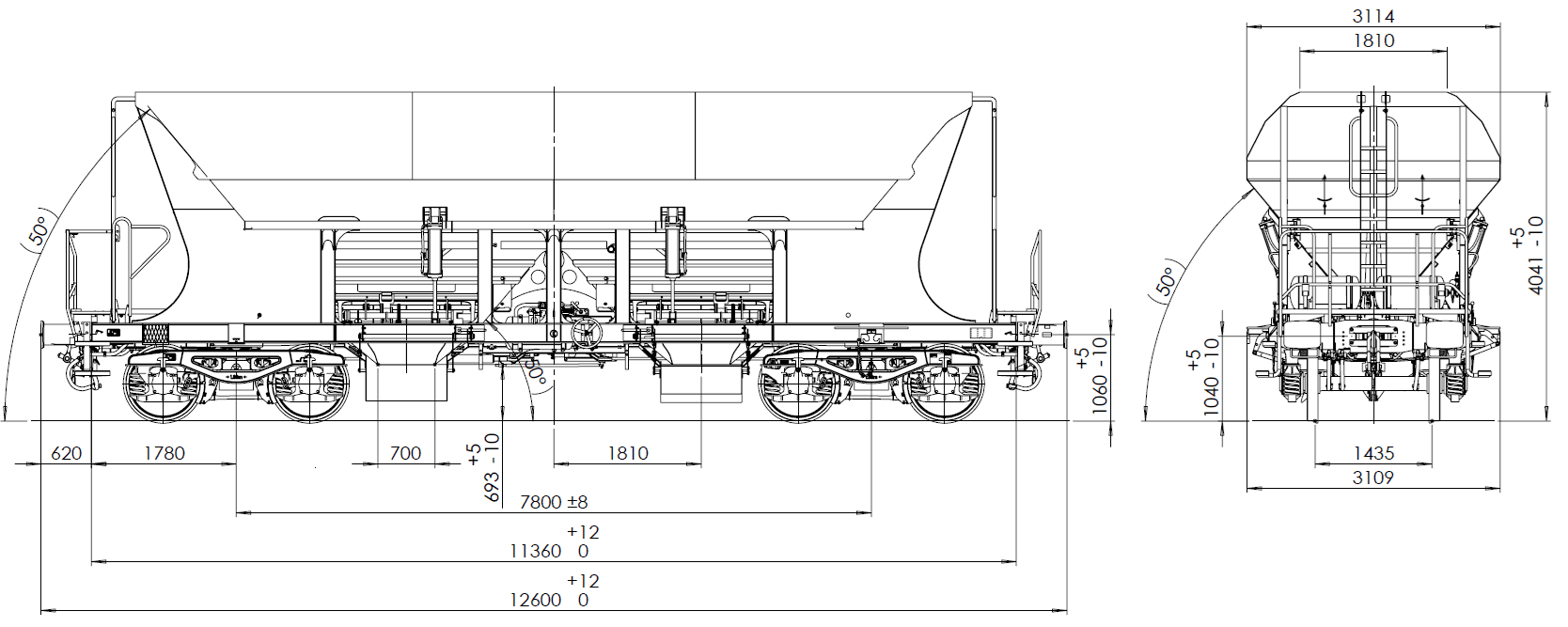

| Length over buffers | 12 600 mm |
|---|---|
| Tare weight | 21 t ± 2% |
| Loading weight | 69 t |
| Total weight | 90 t |
| Maximum axle load | 22,5 t |
| Bogie | Y25 Lsd |
| Brake | GP-A |
| Distance between pivots | 7 800 mm |
| Kinematic gauge | G1 - EN 15273-2 |
| Loading capacity | 48 m³ |
| No. of wagons in a train (700 m) | 53 |
| No. of unloading apertures | 4 |
| Width of the unloading apertures | 468 mm |
| Length of the unloading apertures | 2115 mm |
| Loading widht | 1810 mm |
| Hopper angle | 50° |
